Plate |
|
Description |
| 1 |
 |

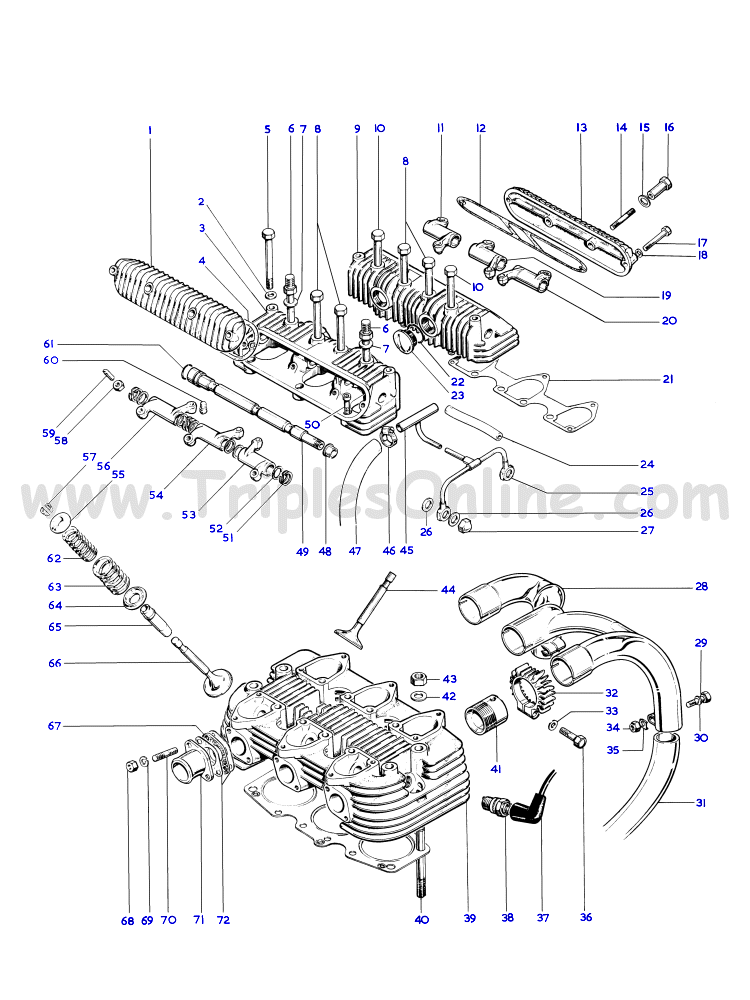

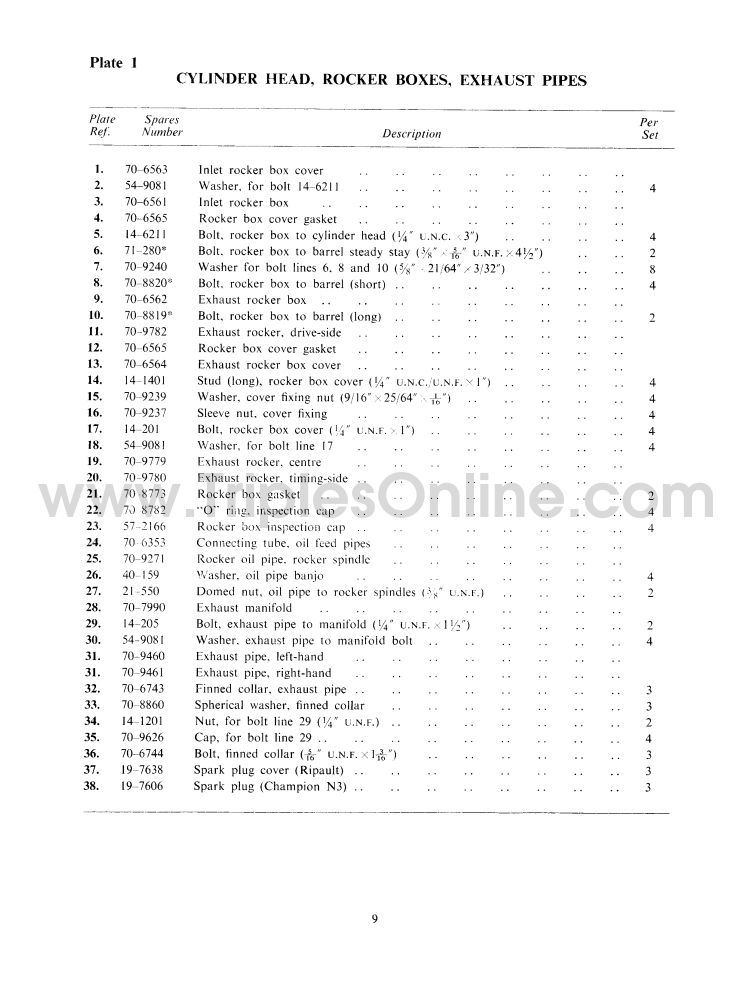

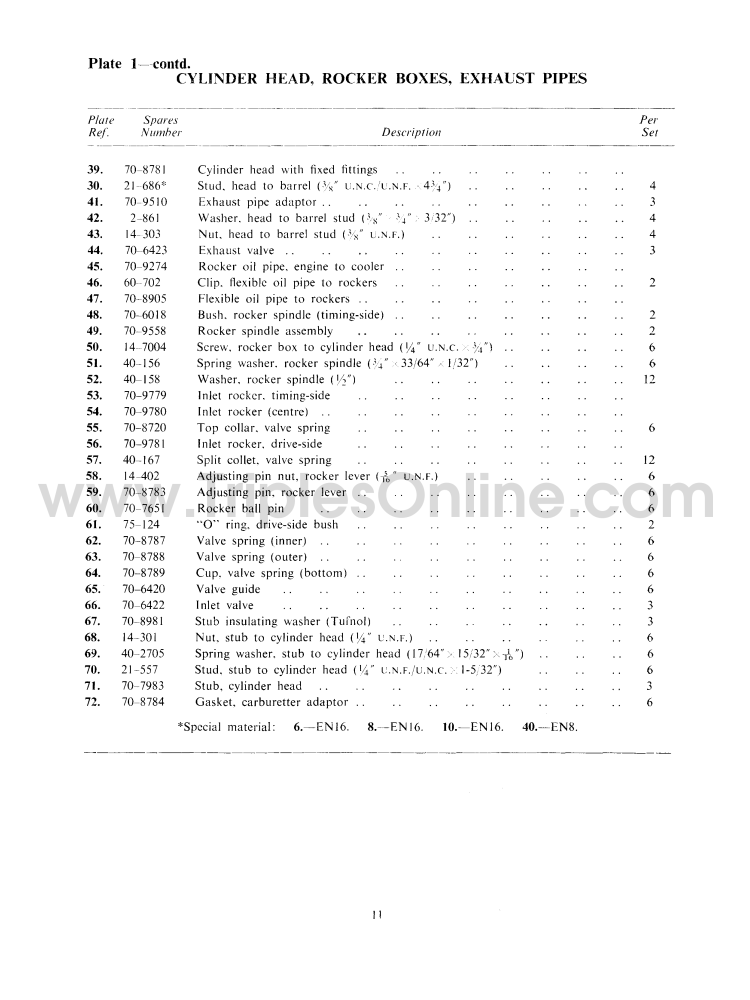

Cylinder Head, Rocker Boxes, Exhaust Pipes |
| 2 |
|

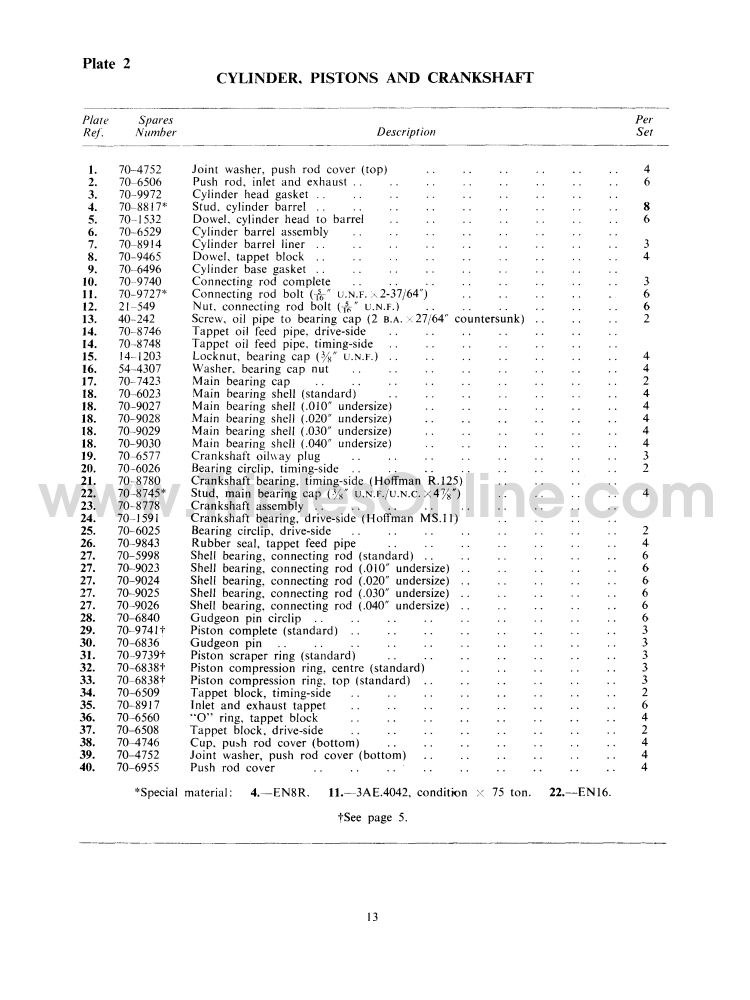

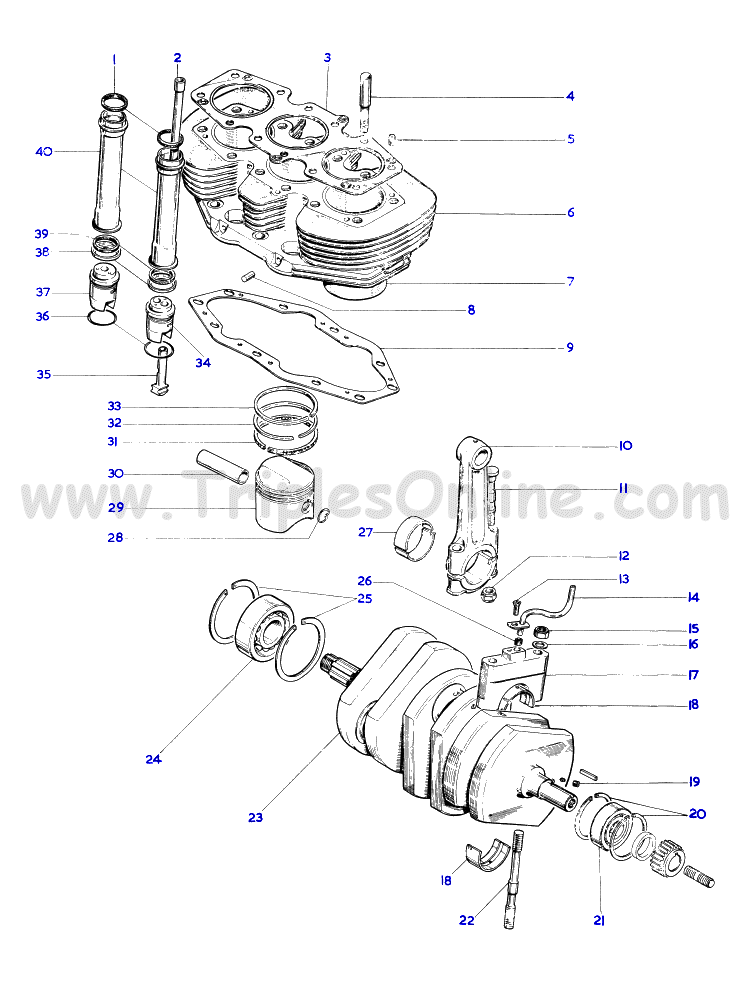

Cylinder, Pistons and Crankshaft |
| 3 |
|

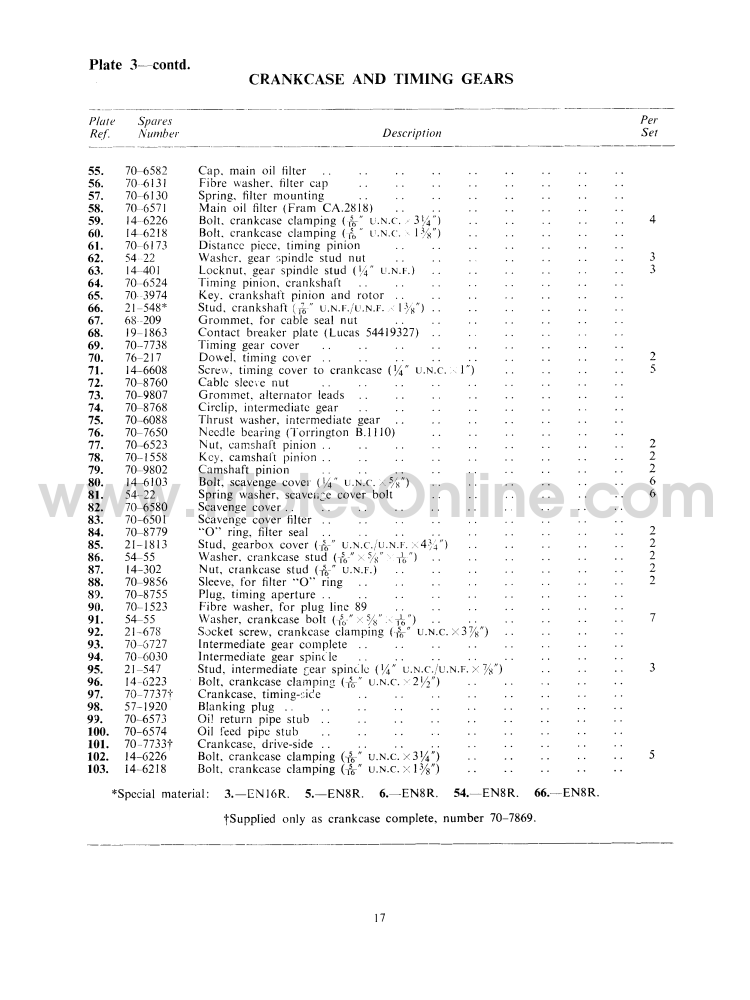

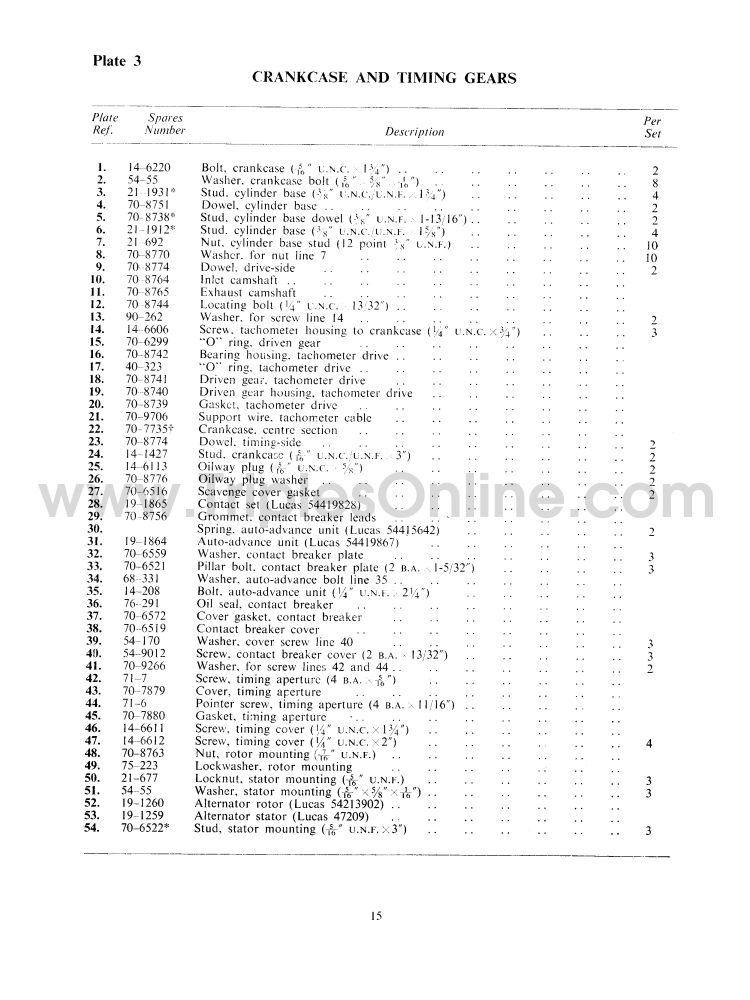

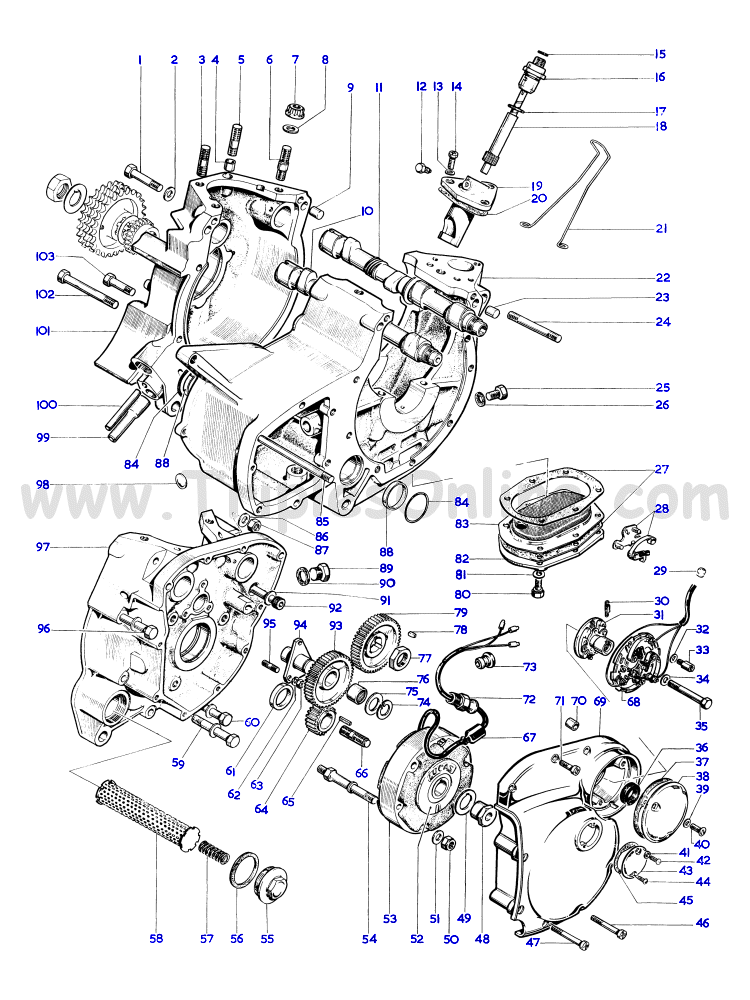

Crankcase and Timing Gears |
| 4 |
|

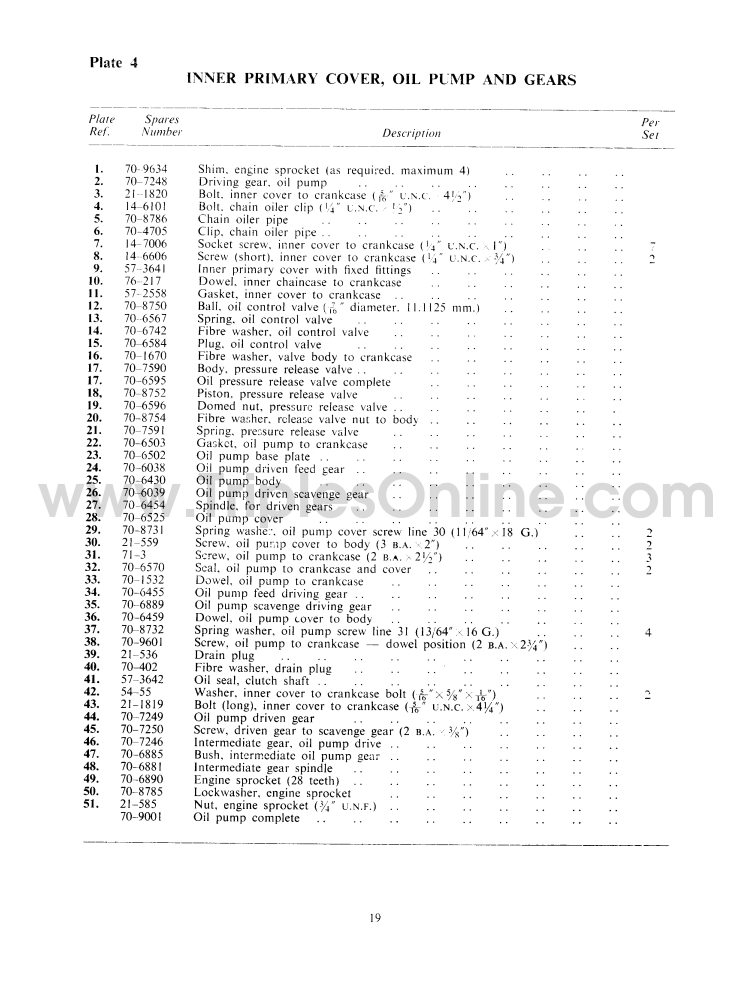

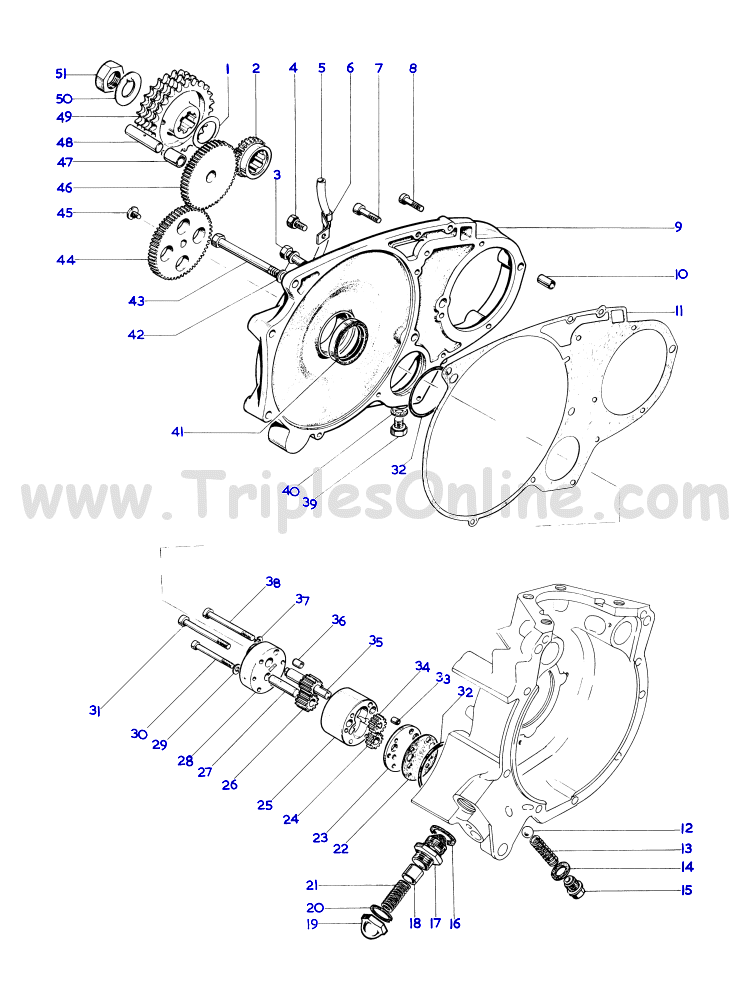

Inner Primary Cover, Oil Pump and Gears |
| 5 |
|

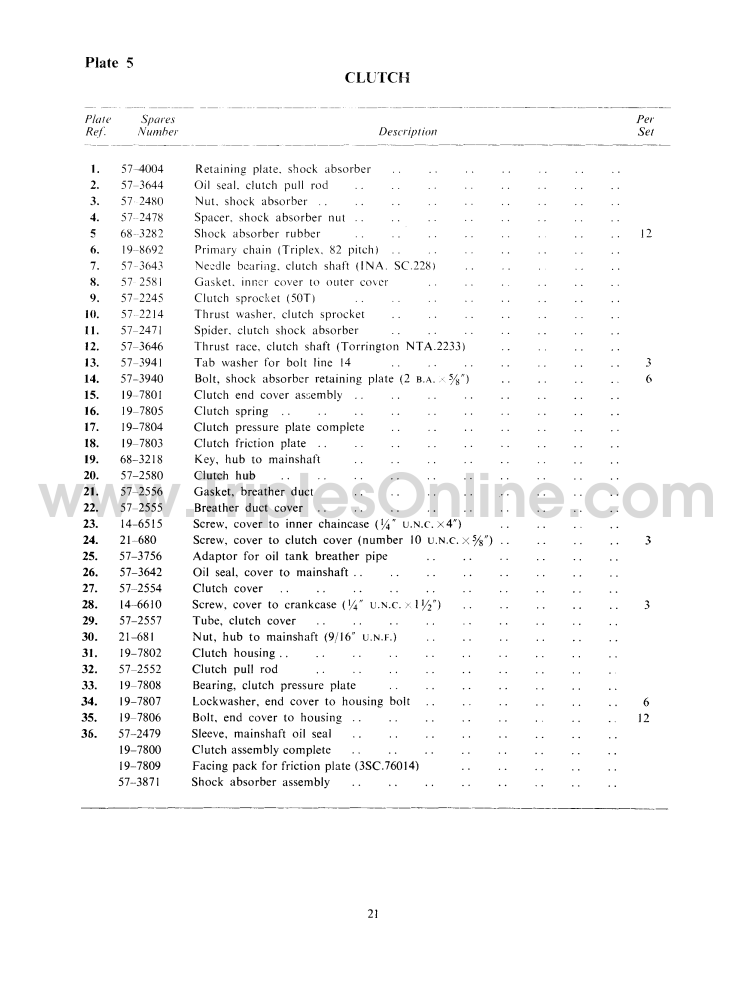

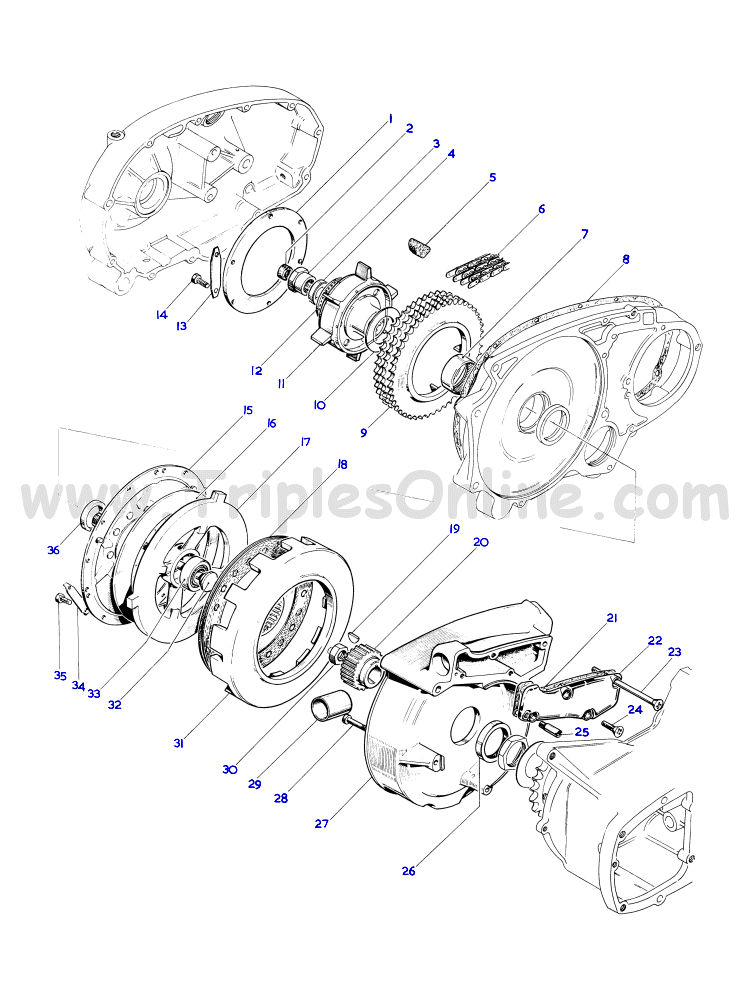

Clutch |
| 6 |
|

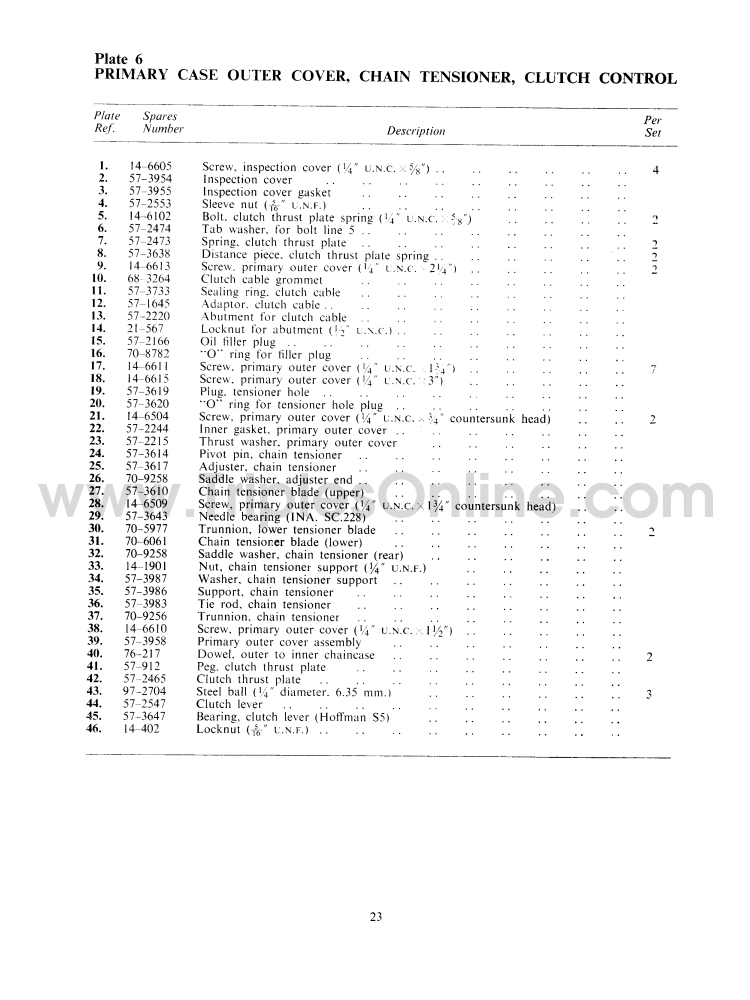

Primary Case Outer Cover, Chain Tensioner, Clutch Control |
| 7 |
|

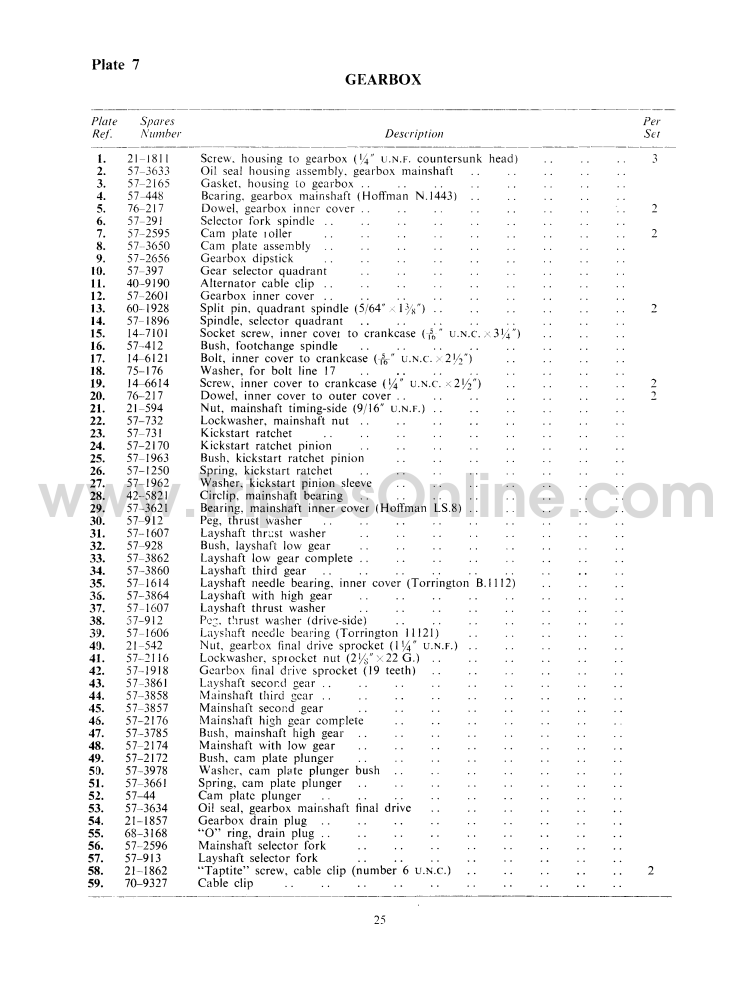

Gearbox |
| 8 |
|

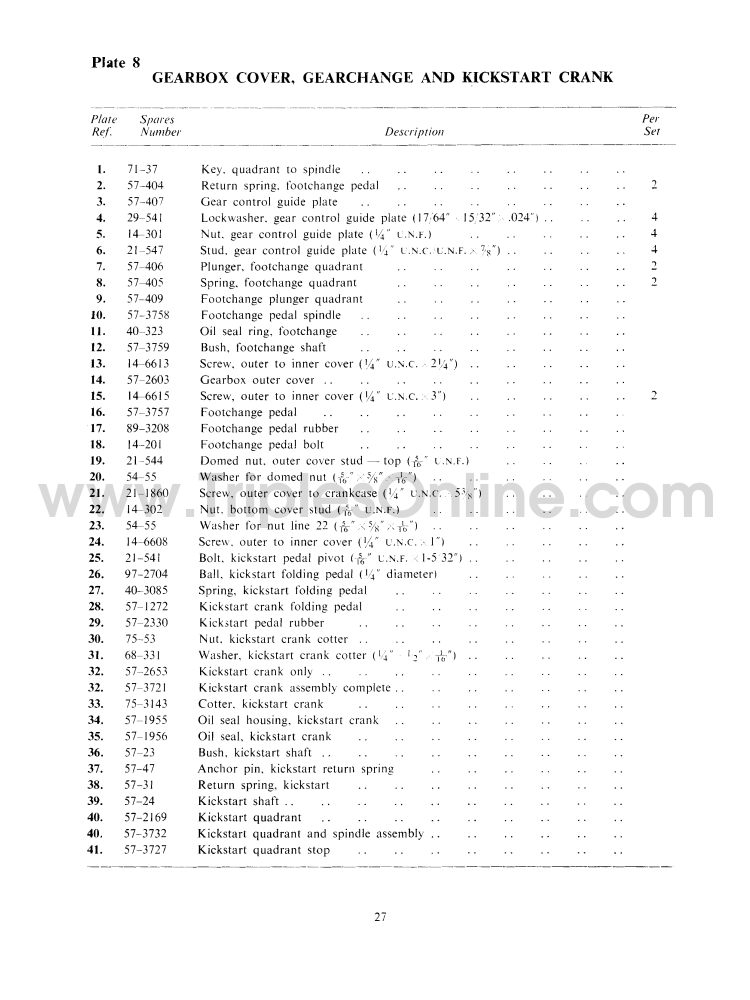

Gearbox Cover, Gearchange and Kickstart Crank |
| 9 |
|

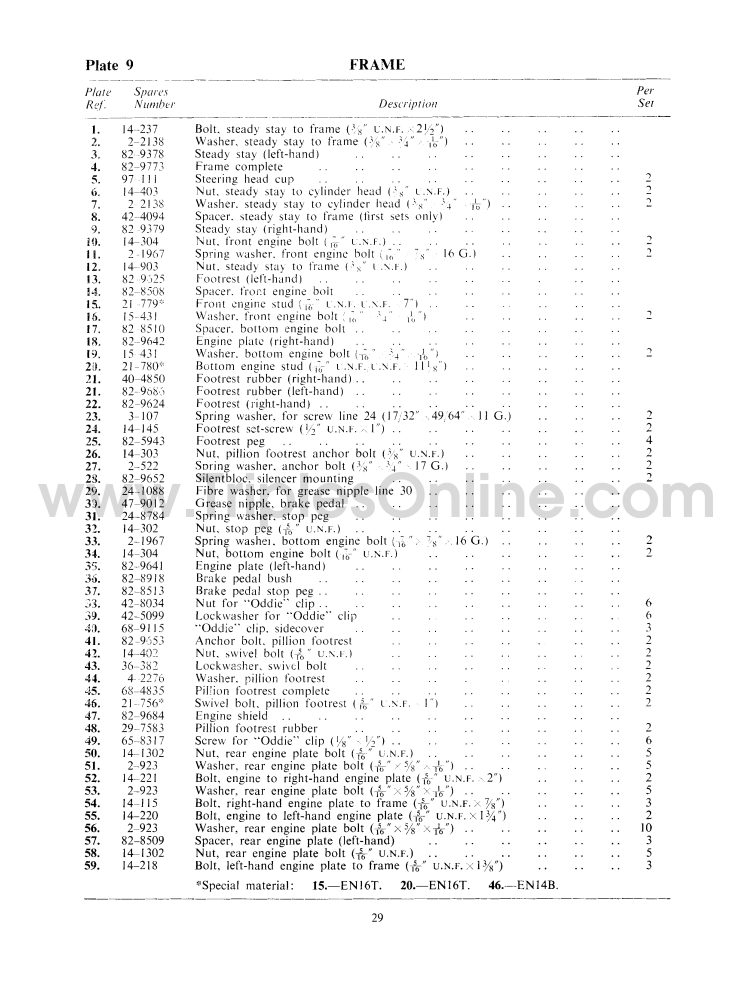

Frame |

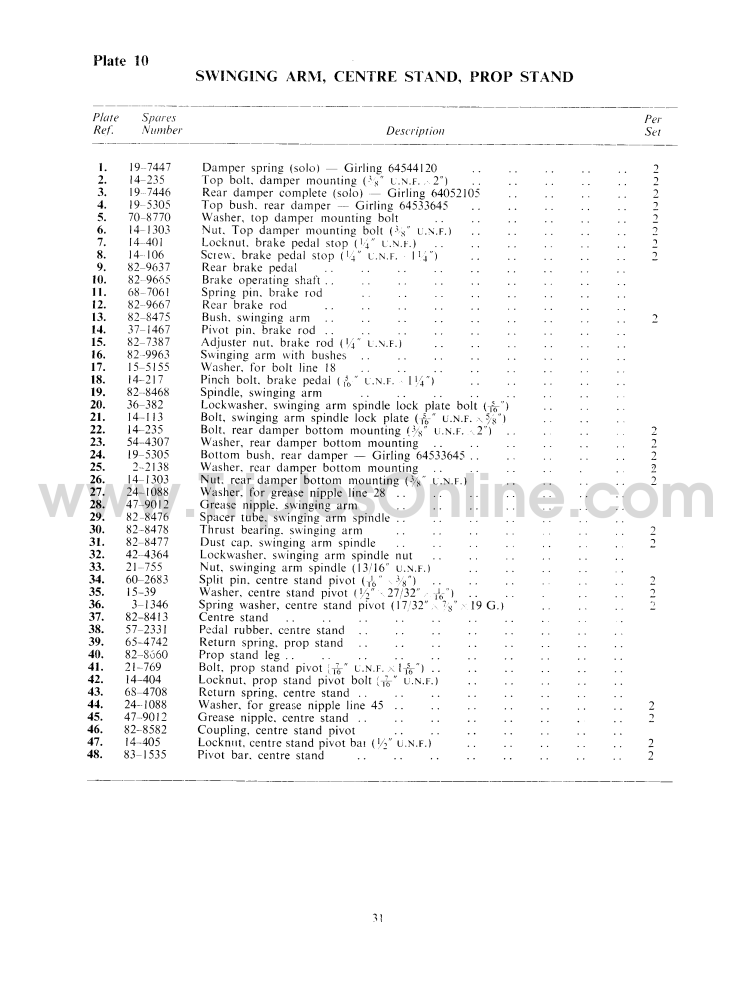

| 10 |
|
Swinging Arm, Center Stand, Prop Stand |
| 11 |
|

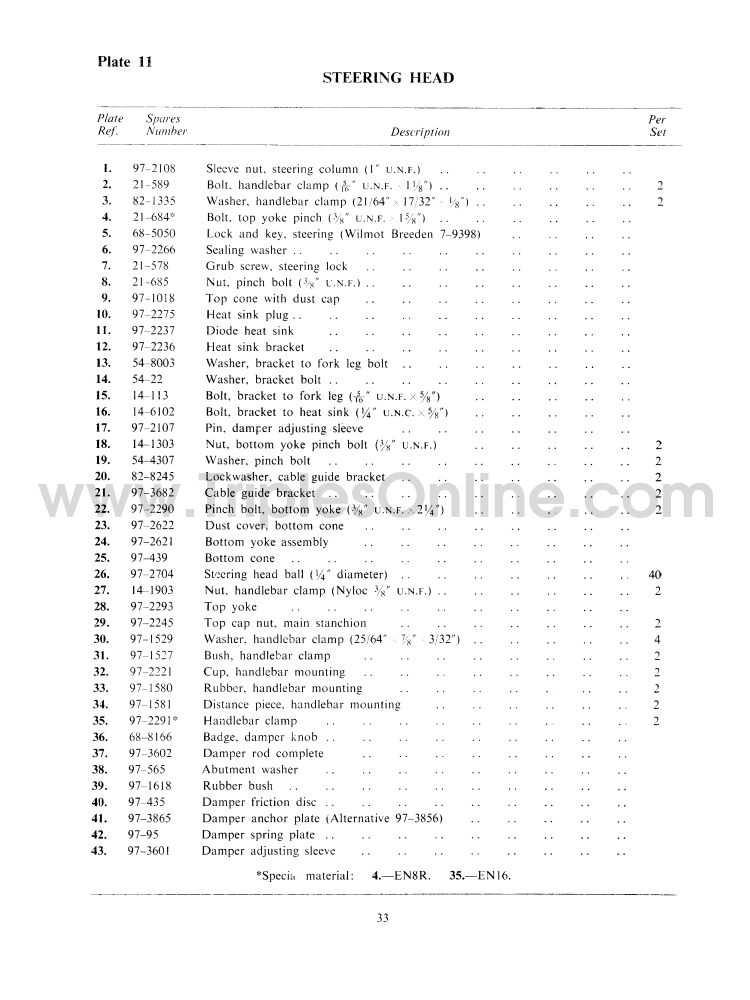

Steering Head |
| 12 |
|
Front Forks |
| 13 |
|

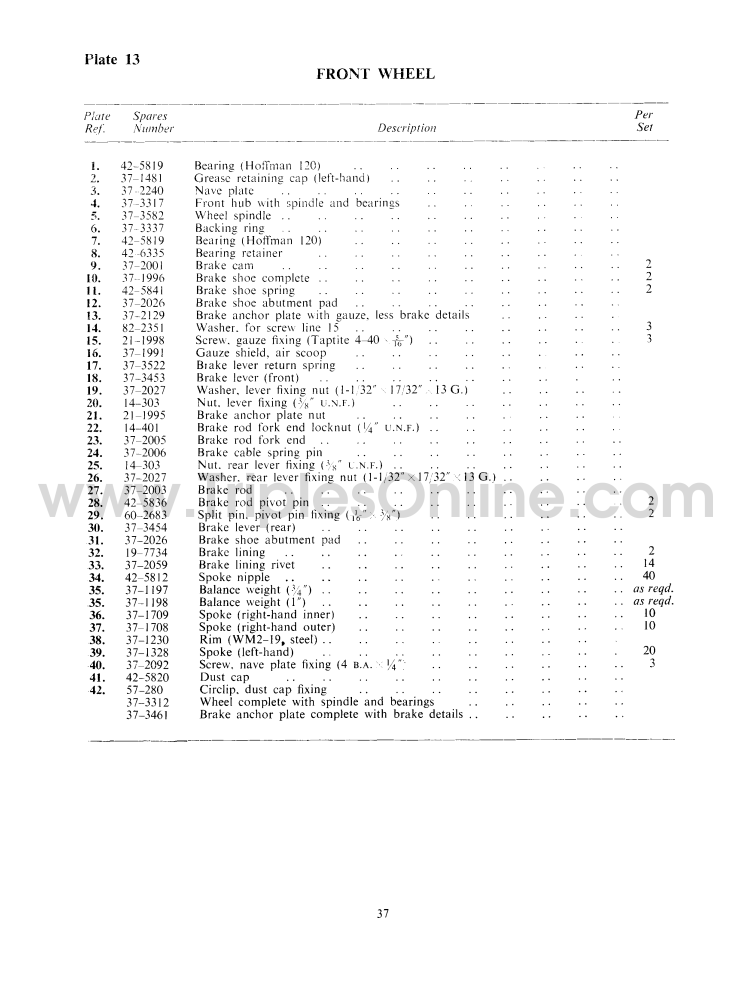

Front Wheel |
| 14 |
|

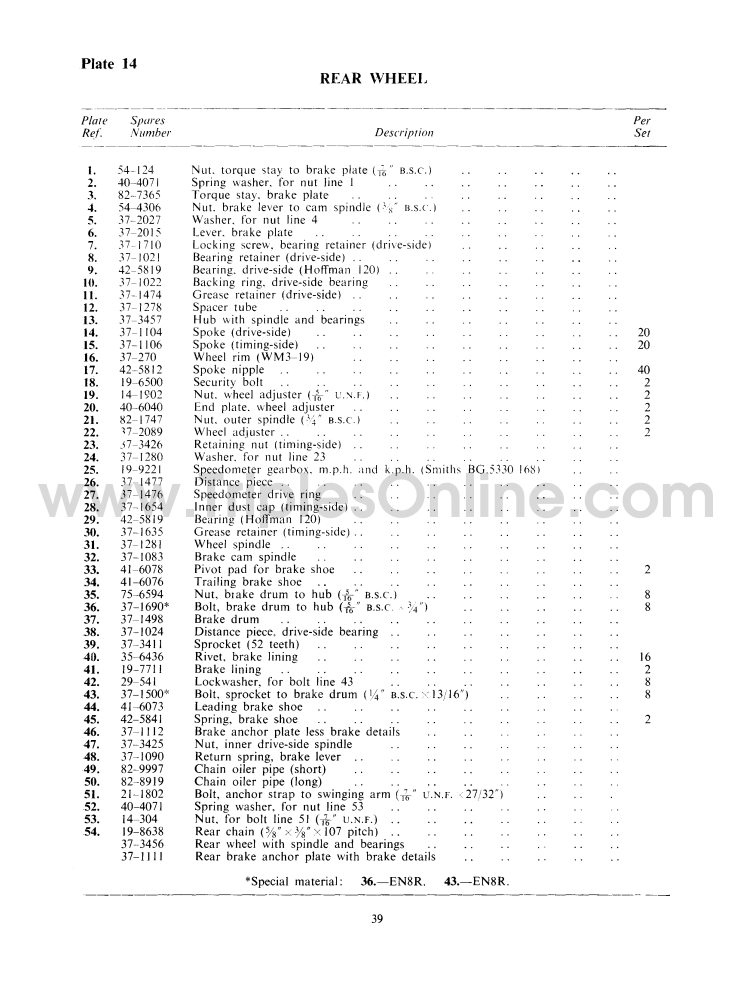

Rear Wheel |
| 15 |
|

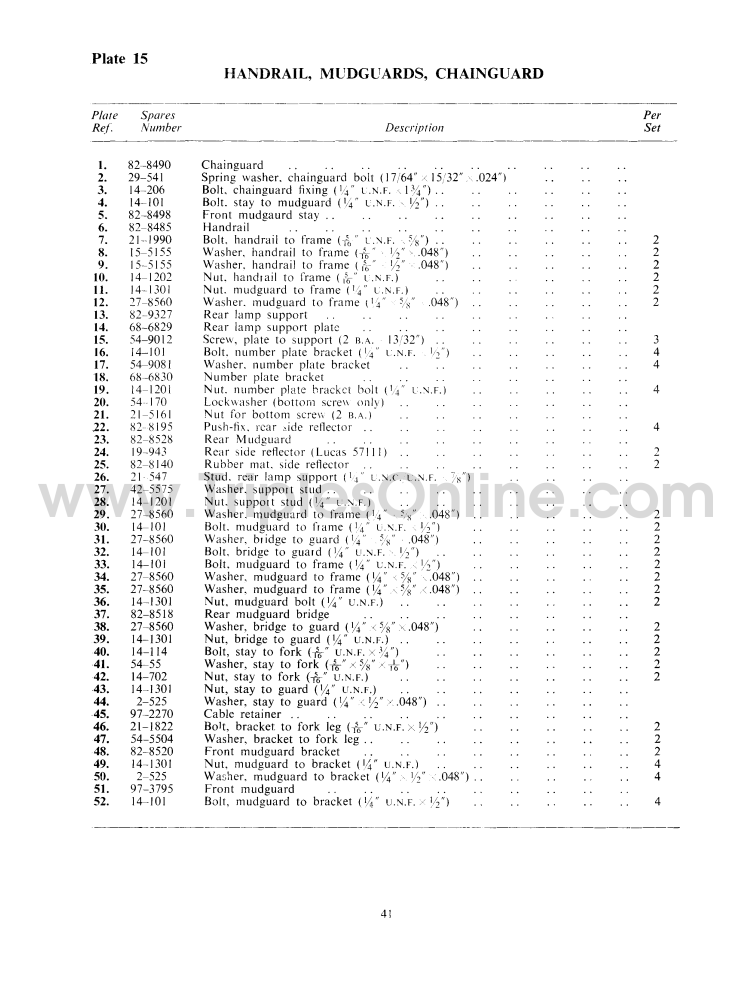

Handrail, Mudguards, Chainguard |
| 16 |
|
Petrol Tank, Handlebar and Controls |
| 17 |
|

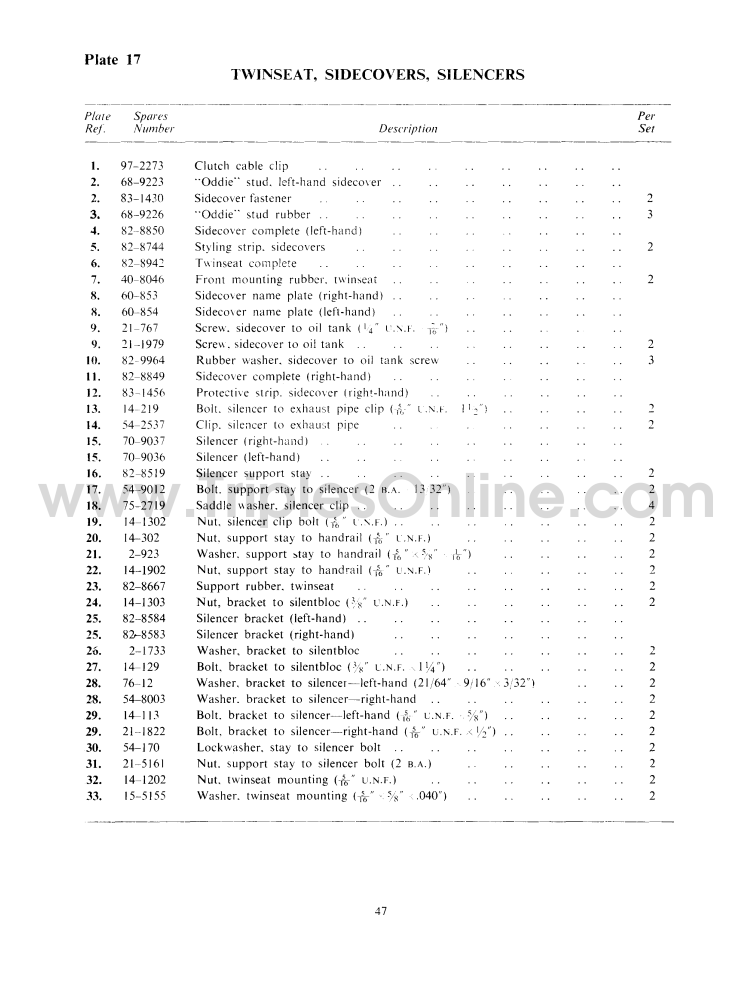

Twinseat, Sidecovers, Silencers |
| 18 |
|

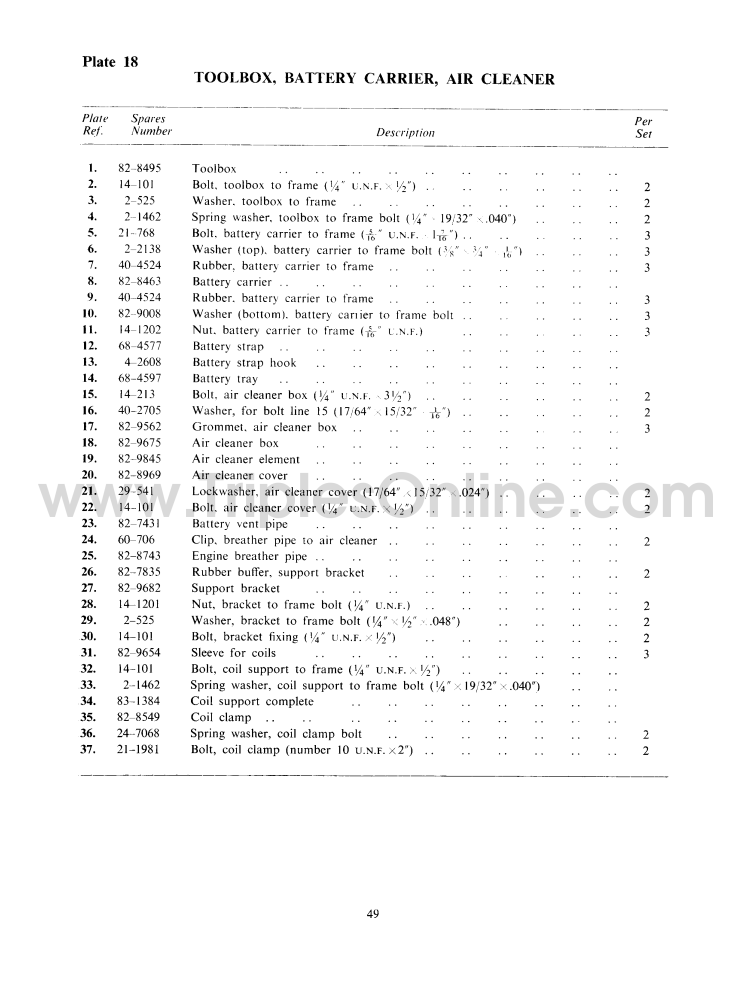

Toolbox, Battery Carrier, Air Cleaner |
| 19 |
|

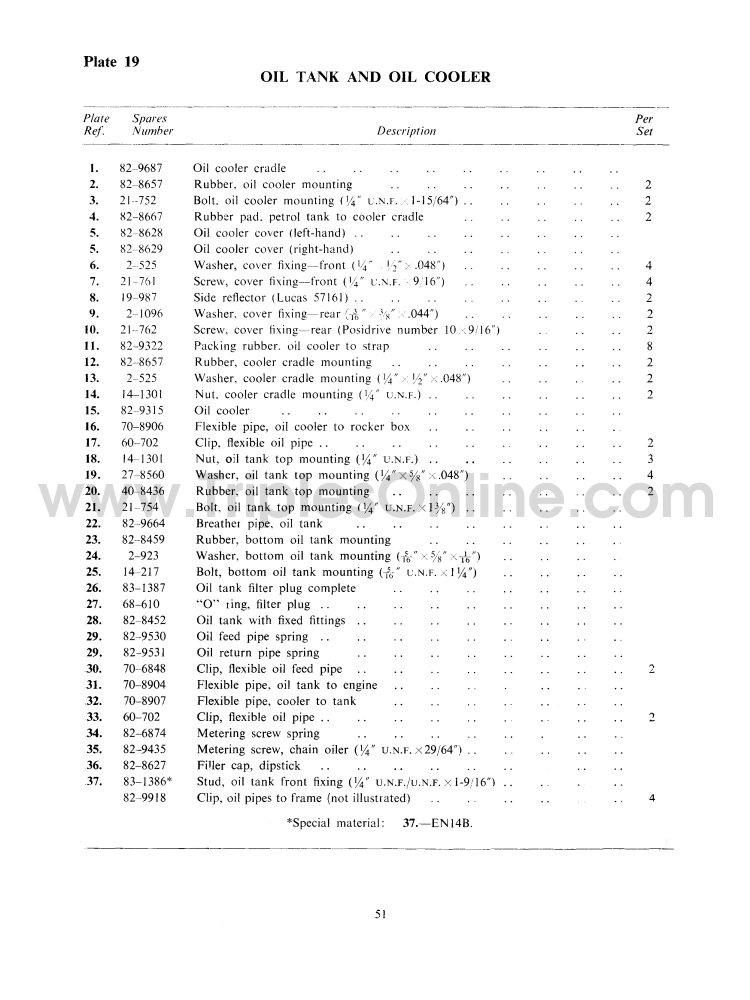

Oil Tank and Oil Cooler |
| 20 |
|

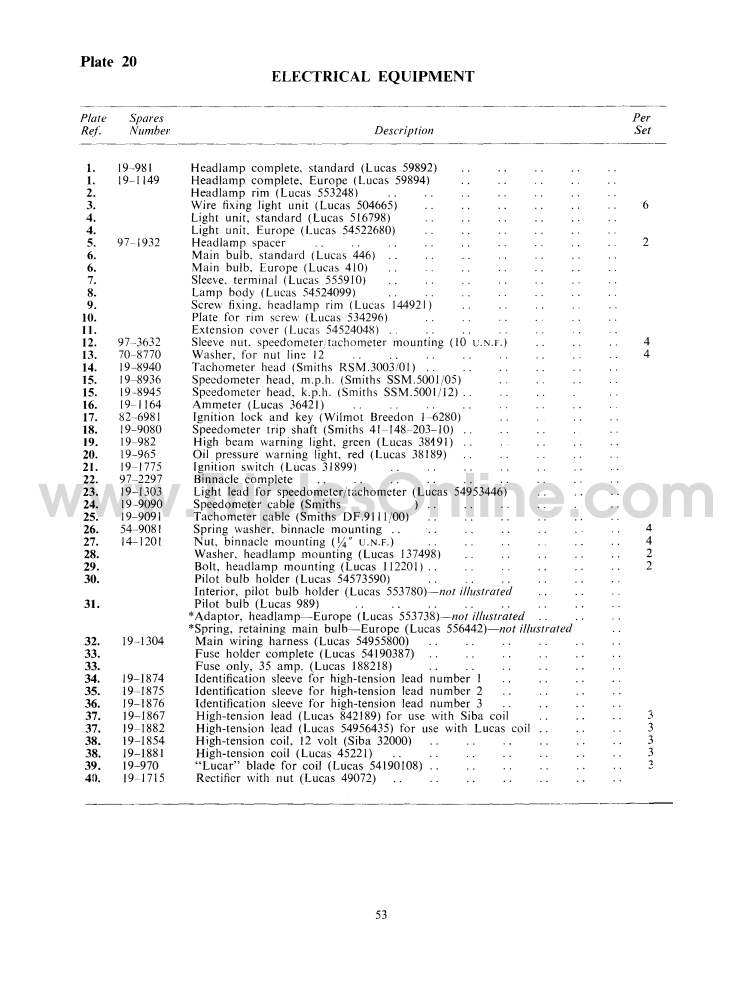

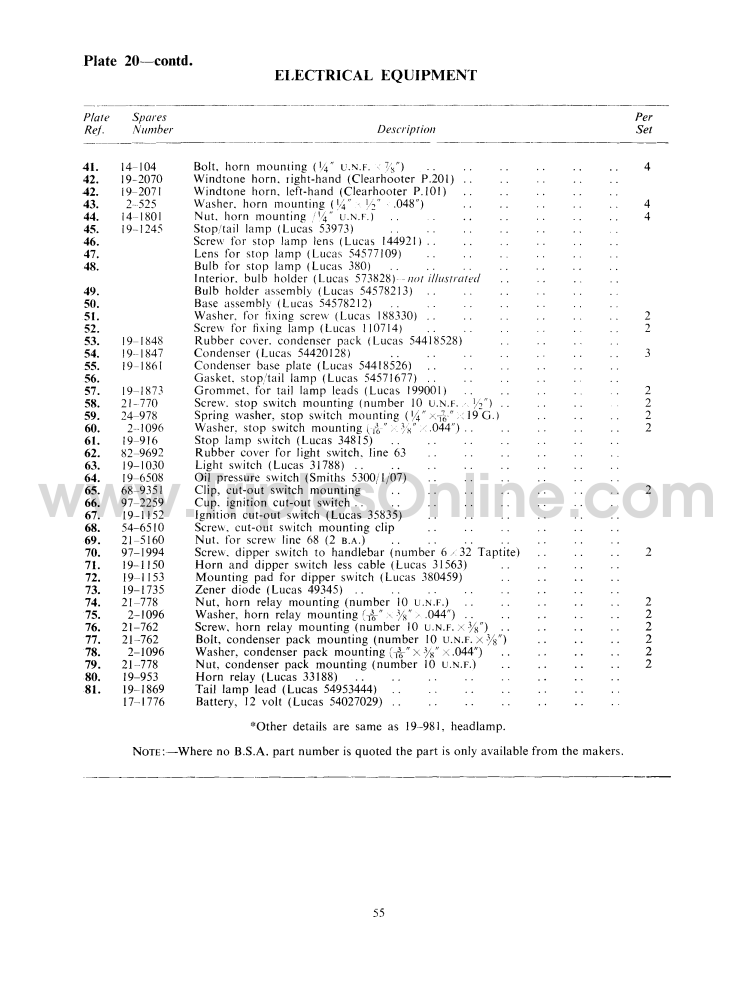

Electrical Equipment |
| 21 |
|

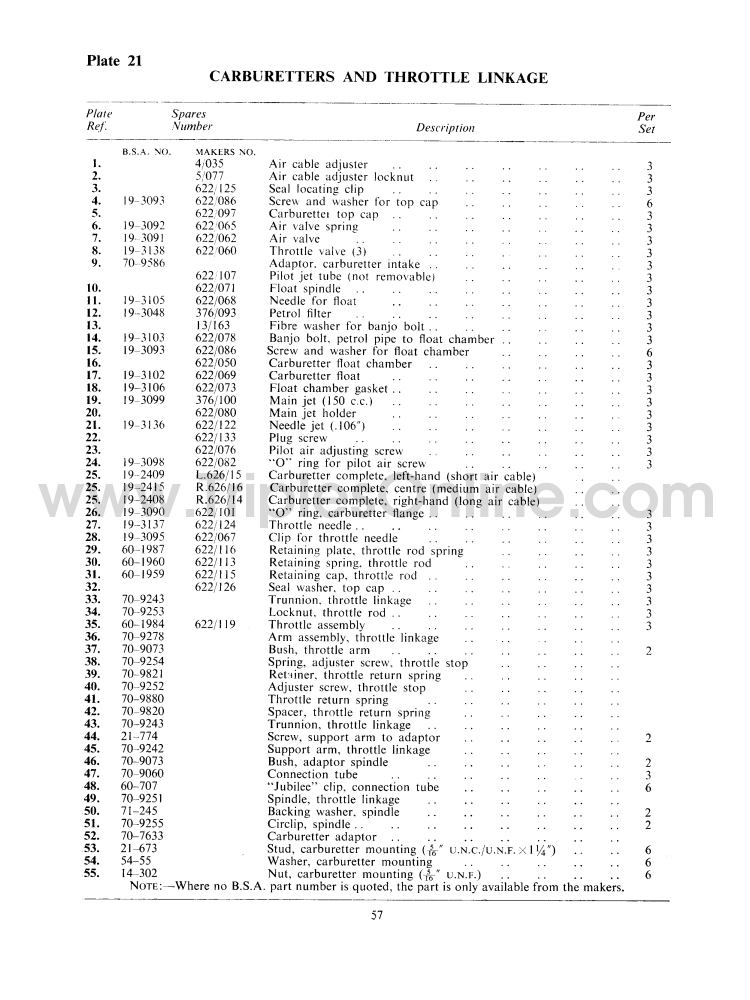

Carburetters and Throttle Linkage |
| 22 |
|

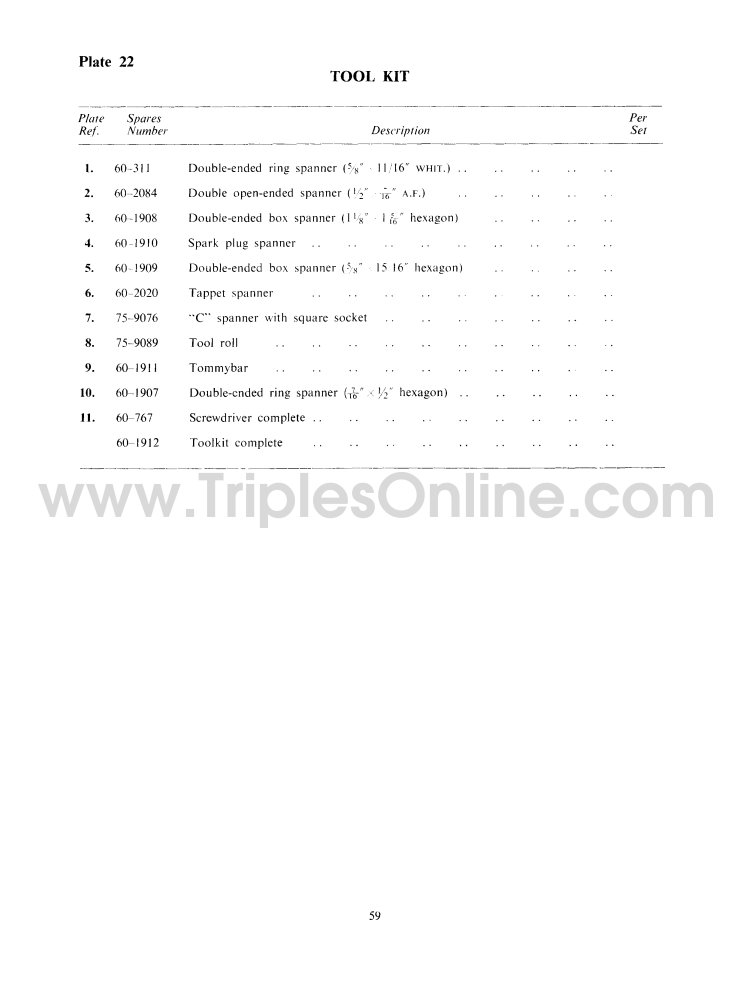

Tool Kit |
